Bar FAZ Module Angle LED Vondom, éclairé de l'intérieur sur fond noir

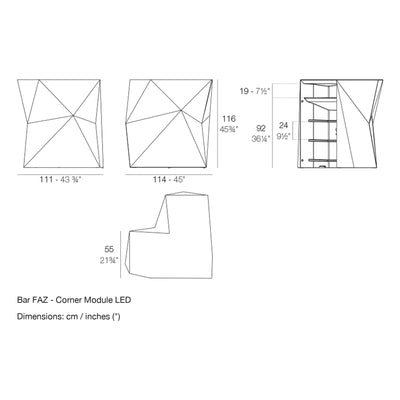

Dimension drawing Bar FAZ - Corner Module LED
Bar Collection FAZ Module d'Angle Lumineux Vondom - 2
Bar Collection FAZ Module d'Angle Lumineux Vondom - 3
Bar Collection FAZ Module d'Angle Lumineux Vondom - 4
Bar Collection FAZ Module d'Angle Lumineux Vondom - 5
Bar Collection FAZ Module d'Angle Lumineux Vondom - 6
Bar Collection FAZ Module d'Angle Lumineux Vondom - 7
 1 / 8

Bar FAZ - Corner Module LED

Choose your modules

Your bar

No modules yet.

Total excl. VAT
WhatsApp

They trusted us

  • Logo Marriott Paris Champs-Élysées, hôtel client de Verano Design
  • Logo Accor, groupe hôtelier client de Verano Design
  • Logo MGallery Hotel Collection, client de Verano Design
  • Logo Club Med, client de Verano Design
  • Logo Nikki Beach Hotels & Resorts, client de Verano Design
  • Logo La Licorne Hotel & Spa, client de Verano Design

Technical specifications

General
Dimensions

114x111x116 cm

Weight

45.51 kg

Beschreibung

The light up FAZ bar corner module, a sculpture that glows

This light up version of the corner module from the Vondom Faz collection extends the counter's presence long after sunset, for a bar that remains a visual focal point in the evening.

Adjustable light to suit the mood

Available in 4500K white for a neutral atmosphere, or in multicolour RGBW controlled by remote up to 15 metres away, with a DMX version to synchronise the lighting across several modules. Powered by a 5 metre cable or a rechargeable battery lasting 8 to 12 hours.

The same robustness as the daytime version

The rotomoulded polyethylene keeps its UV8 certification and its resistance to changing weather, LED or not, for a counter that stays immaculate despite busy service.

Materials
Frame
Rotomoulded polyethylene
  • Extremely durable.
  • UV-resistant: UV8 certified, does not fade in the sun.
  • Waterproof
  • Frost-resistant: -60°C to +80°C
  • Easy care
  • 100% recyclable

Avoid direct exposure to sun and rain for the lacquered finish.

LED
Power supply

Cable

  • Cable length 5m
  • Type : Class 2
  • Voltage: (100‑240V AC)
  • Frequency (50‑60 Hz)

Battery

  • Battery life of 8h-12h
  • Charging time: approximately 5 hours
  • Number of charge cycles: ~500 cycles
  • Voltage: 12V
  • Capacity: 5.2 to 19 Ah
  • IP65 / CE / RoHS
  • Charger supplied: Mains input: 100-240V AC / 50-60 Hz

Lighting

White 4500K

  • Luminous flux: 720 to 2800 LM
  • Power: 12 to 90 W
  • IP65 protection
  • Operating ambient temperature: up to 40 °C

Multicolour RGBW

  • Multicolour RGBW LEDs
  • Colour transitions and intensity changes
  • Remote control with a range of 10/15m
  • IP65 protection
  • Operating ambient temperature: up to 40 °C


Multicolour RGBW DMX

  • Multicolour RGBW LEDs
  • Colour transitions and intensity changes
  • Remote control with a range of 10/15m
  • Home WiFi DMX (iOS/Android) or professional XLR (not included)
  • Lighting synchronisation between different devices
  • IP65 protection
  • Operating ambient temperature: up to 40 °C
Warranties
Warranties
  • Warranty: 2 years.
  • Lifespan: 10 years
  • Care: Quick and easy to clean with a wipe of a sponge.
  • Strength: High resistance to knocks and impacts.
  • Heavy use

Certifications
Polyethylene
  • Fire certification: UL94 HB
  • UV-resistant: UV8

LED lighting
  • Compliance: CE and RoHS
  • Protection rating: IP65, suitable for damp areas
  • Electrical and photobiological safety: EN IEC 62031, EN 62493, EN 62471
  • Electromagnetic compatibility: EN IEC 55015, EN 61547, EN 61000-3-2, EN 61000-3-3
  • Remote control and DMX: EN 300 220, EN 301 489
  • Ecodesign: Regulation (EU) 2019/2020

Vondom EU declaration of conformity for the white, RGBW and RGBW DMX LED modules.

Entretien
Polyéthylène rotomoulé

Pulvérisez un dégraissant ménager sur la surface, frottez avec un chiffon humide, puis rincez à grande eau. Le nettoyeur haute pression convient. Laissez sécher à l'air libre.

N'utilisez jamais de produit abrasif ni corrosif. Une housse protège le mobilier de la poussière entre deux utilisations.

Éclairage LED

Débranchez l'alimentation avant tout nettoyage et avant de changer une ampoule.

3D & Technical Files
Livraison

Votre commande est livrée en 11 à 15 jours ouvrés :

  • Fabrication : 7 à 10 jours ouvrés
  • Transport : 4 à 5 jours ouvrés
  • Commande passée avant 19 h (heure de Paris) : le délai démarre le jour même

Nous vous confirmons la date de livraison par email à la validation de votre commande.

Harmony at a special price

Complete the look with the rest of the collection

Designer

Discover the world of Ramón Esteve

Ramón Esteve
