FAZ Vondom Light Up Bench

Banc Faz LED Vondom, éclairé de l'intérieur sur fond noir

1 / 10

They trusted us They entrusted us with their outdoor spaces

Bench - Faz LED

1.412,40 €

Multicolour lighting, remote control included
Light synchronisation across several pieces (DMX)
IP65 waterproof, built to stay outdoors

Product variants

07 56 90 02 78

Free advice · Quote within 2 working hours

Professional? Dedicated prices and a personal contact for your projects.

Log in

They trusted us They entrusted us with their outdoor spaces

Faz LED Bench, Lit from Within on a Black Background, Vondom

Bench - Faz LED

White 4500K / Cable

1.412,40 €

Technical specifications

General

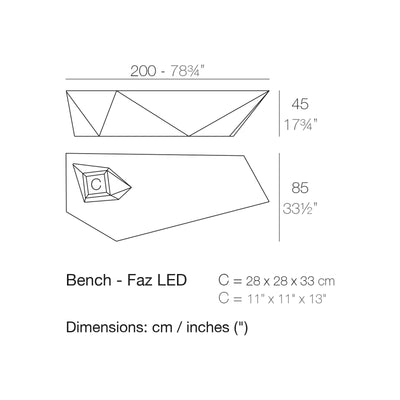

Dimensions

85x200x45 cm

Weight

37 kg

Description

The light up Faz bench, built-in light according to Ramón Esteve

This bench from the Vondom Faz collection, designed by Ramón Esteve, lights up from within: seating by day, a light source by night. It belongs in a garden, on a patio or by a pool.

Three lighting options, two power supplies

At 200 cm long and 45 cm high, it seats several people. The lighting comes in 4500 K white, multicolour RGBW or RGBW DMX, with a remote control with a range of 10 to 15 m. It runs on a 5 m cable or on a rechargeable battery, for 8 to 12 hours of use.

Rotomoulded polyethylene, waterproof lighting

The rotomoulded polyethylene is UV8 certified, waterproof, and withstands -60 °C to +80 °C. The LED module is IP65 protected, suitable for wet areas. This sturdiness suits the sustained use of a hotel or restaurant.

Materials

Frame

Rotomoulded polyethylene

Ultra-strong.
UV-resistant : UV8 certified, does not fade in the sun.
Waterproof
Frost-resistant: -60°C to +80°C
Impact-resistant
Easy care
100% recyclable

Avoid direct exposure to sun and rain for the lacquered finish.

Covering

Extremely comfortable & soft
Heavy-duty use
Ultra-dense & hard-wearing
Wear resistance
UV-resistant : Does not fade
Chlorine-resistant
Water-resistant/water-repellent fabric
Quick-drying
Stain-resistant
Mould-resistant & antibacterial

LED

Power supply

Cable

Cable length 5m
Type : Class 2
Voltage: (100‑240V AC)
Frequency (50‑60 Hz)

Battery

Battery life of 8h-12h
Charging time: approximately 5 hours
Number of charge cycles: ~500 cycles
Voltage: 12V
Capacity: 5.2 to 19 Ah
IP65 / CE / RoHS
Charger supplied: Mains input: 100-240V AC / 50-60 Hz

Lighting

White 4500K

Luminous flux: 720 to 2800 LM
Power: 12 to 90 W
IP65 protection
Operating ambient temperature: up to 40 °C

Multicolour RGBW

Multicolour RGBW LEDs
Colour transitions and intensity changes
Remote control with a range of 10/15m
IP65 protection
Operating ambient temperature: up to 40 °C

Multicolour RGBW DMX

Multicolour RGBW LEDs
Colour transitions and intensity changes
Remote control with a range of 10/15m
Home WiFi DMX (iOS/Android) or professional XLR (not included)
Lighting synchronisation between different devices
IP65 protection
Operating ambient temperature: up to 40 °C

Warranties

Warranty: 2 years.
Lifespan: 10 years
Care: Quick and easy to clean with a wipe of a sponge.
Strength: High resistance to knocks and impacts.
Heavy use

Certifications

Polyethylene

Fire certification : UL94 HB
UV-resistant : UV8

Coating

Fire resistance: EN 1021 (Part 1 & 2), BS 5852 (Crib 5 / Match Test), IMO MSC.307 (88), CAL TB 117, DIN 4102 B1 / NFP 92-507 (M1), NFPA 260
Durability & wear : ISO 12947-2 (Martindale)
UV-resistant : ISO 105-B02, ASTM G154
Chlorine-resistant : ISO 105-E03
Health & environment : OEKO-TEX Standard 100, GREENGUARD

Please refer to the technical data sheets for the certifications specific to each fabric.

LED lighting

Compliance : CE and RoHS
Protection rating : IP65, suitable for damp areas
Electrical and photobiological safety : EN IEC 62031, EN 62493, EN 62471
Electromagnetic compatibility : EN IEC 55015, EN 61547, EN 61000-3-2, EN 61000-3-3
Remote control and DMX : EN 300 220, EN 301 489
Ecodesign : Regulation (EU) 2019/2020

Vondom EU declaration of conformity for white, RGBW and RGBW DMX LED modules.

3D & Technical Files
